Creality CR-Scan Otter 3D Scanner
The Creality CR-Scan Otter 3D Scanner is a high-precision handheld scanner that Creality positions as a universal solution for both small and large objects.
Its main difference and advantage is the four-lens stereo vision design, which ensures an excellent level of detail.
Choose the CR-Scan Otter 3D if you require maximum accuracy of 0.02 mm and the best possible detail for small objects.
This scanner is ideal if scanning is your primary professional need (such as reverse engineering, scanning small jewelry, or prototypes) and you perform the work in your workspace, as the device does not include a wireless connector in the standard package.
The CR-Scan Otter is considered a premium model compared to the Ferret Pro and the Otter Lite.
R-Scan Otter Key Features
-

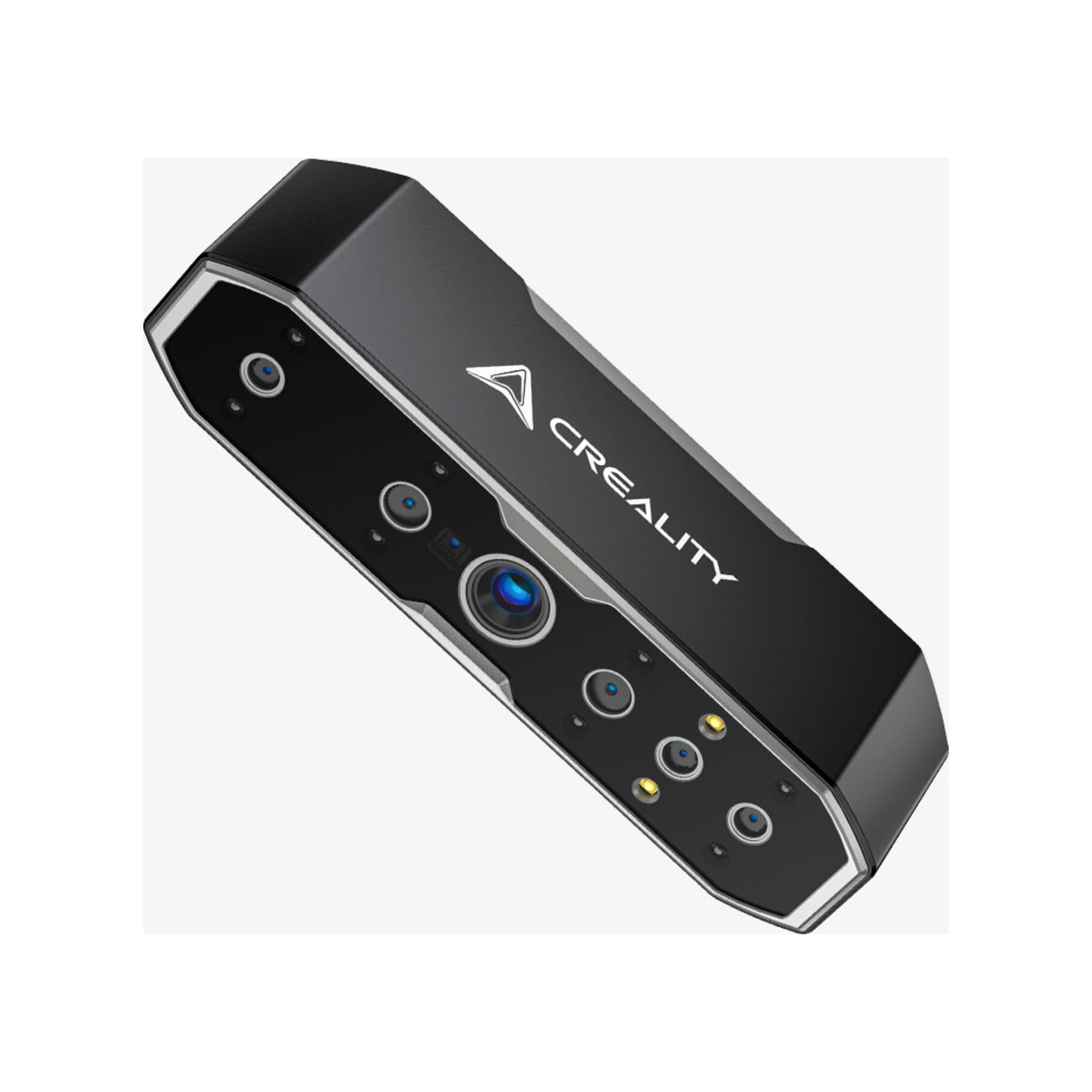

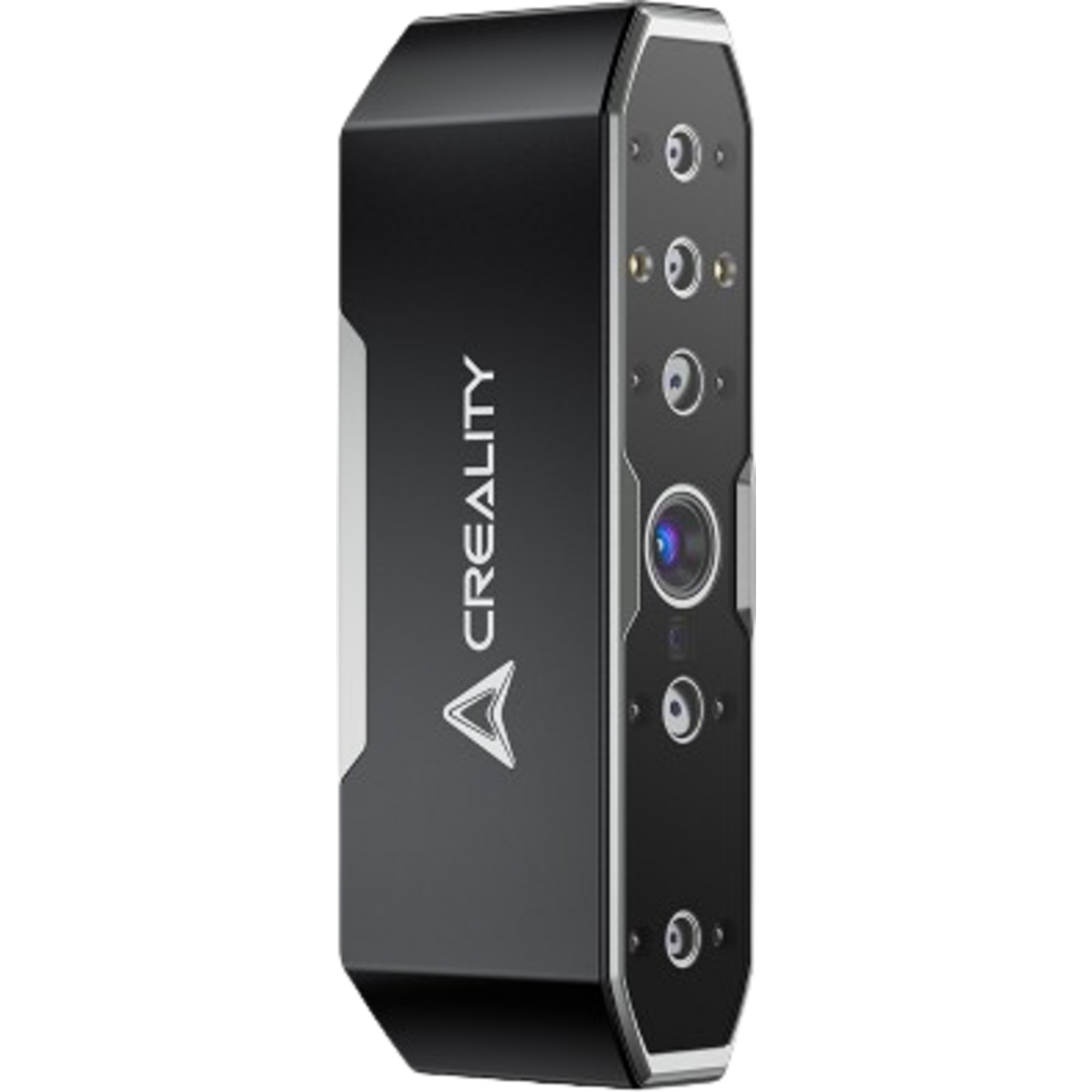

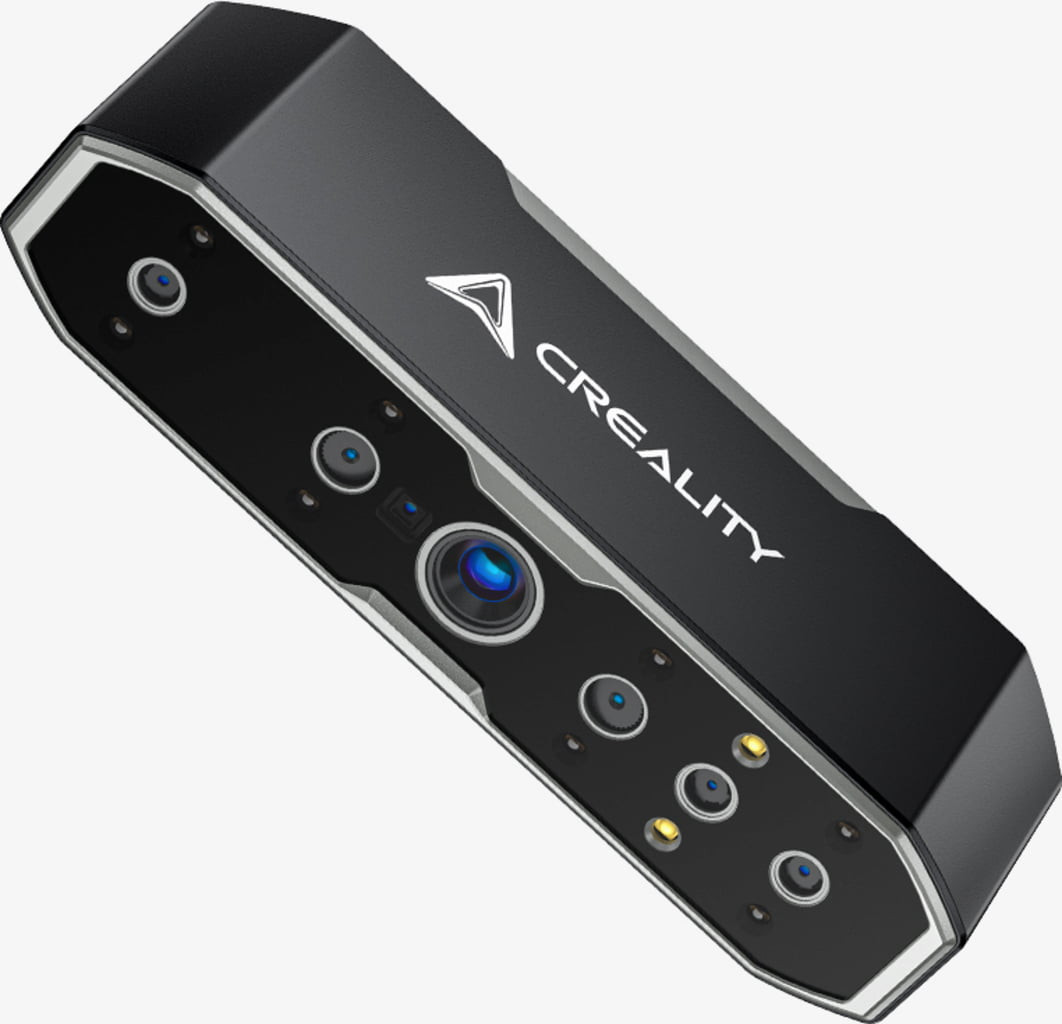

Innovative Lens System (Four Eyes): The Otter uses a unique four-lens stereo vision design that allows it to effectively scan objects of various sizes:
-
1.1. Two Near-Focus Binoculars: Designed for scanning small to medium-sized objects, ensuring rich detail.
-
1.2. Two Wide-Focus Binoculars: Designed for scanning large objects with a wide Field of View (FOV), ensuring stable tracking and minimizing data loss.
-
-
Full-Color Scanning: Features 24-bit color reproduction. It also includes professional-grade texture auxiliary lighting (white LEDs), ensuring high-quality color scanning even in low-light conditions.
-
Material Handling: Capable of scanning black and metallic (non-reflective) objects without the need for matte spray.
-
Outdoor Scanning: Enhanced DOE (Diffractive Optical Element) structured light projection technology provides good performance even outdoors up to $<30,000\ \text{lux}$.
-
Eye Safety: The scanner is Class 1 eye-safe. It uses NIR (Near-Infrared) structured light, making it suitable for face and body scanning.
-
Silent Operation: The all-metal body ensures excellent heat dissipation and allows for a fan-less design, which provides quiet operation.
-
System Support: Supports Windows and macOS. (Note: Wireless scanning with Android/iOS requires a separately purchased accessory, such as the "Scan Bridge").
-
Output Formats: OBJ, STL, PLY.
...
...
...
...
...
...
