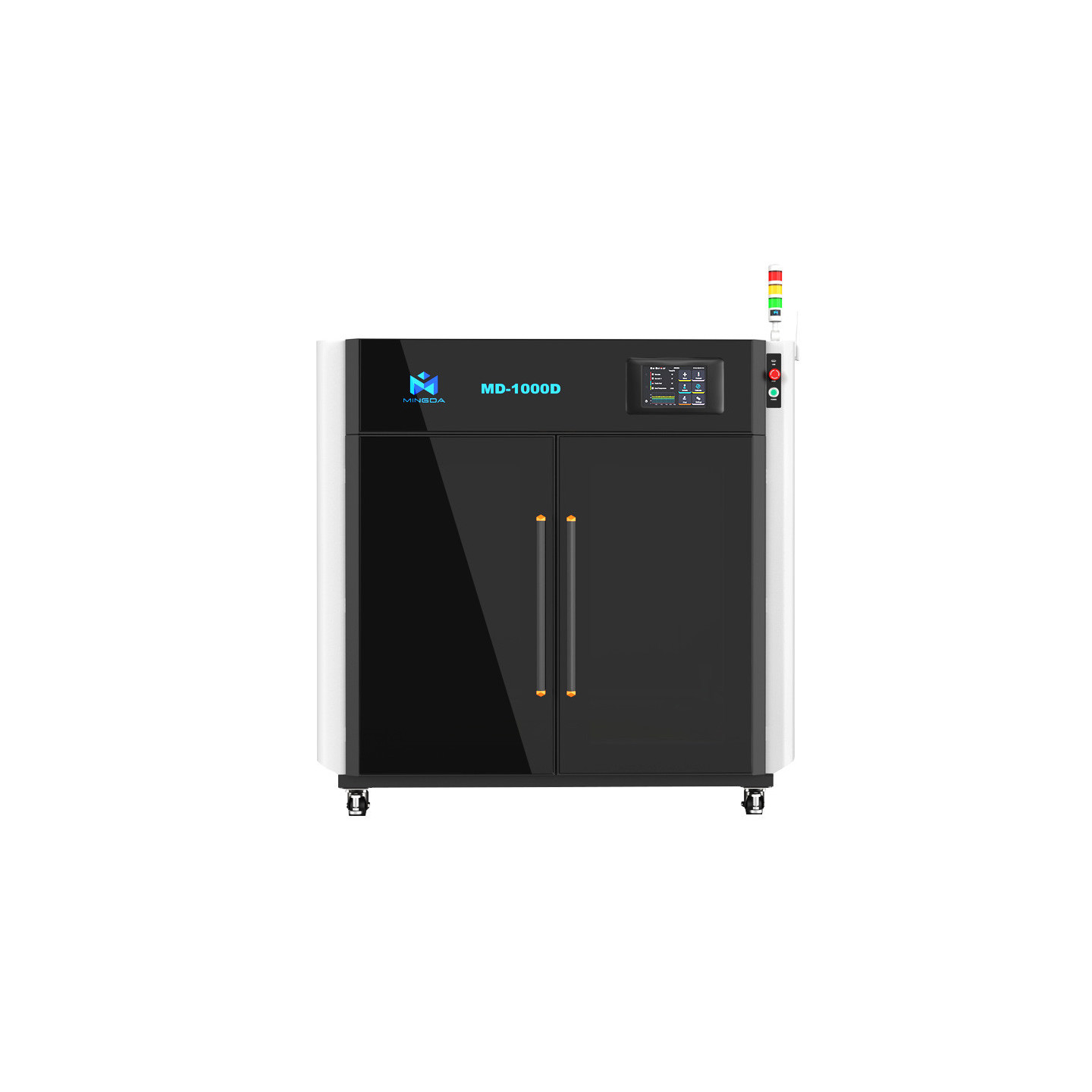

3D Printeris Mingda MD-1000D
No rūpnieciskas līdz augstas kvalitātes hobijam. 5x ātrāka drukāšana, divkāršs ekstrūderis, divkārša sprausla, liels drukāšanas apjoms, kamera, Wi-Fi un daudz kas cits!
MD-1000D
Super Large Size 5X Faster Printing Speed Industrial Grade 3D Printers
The MD-1000D boasts a printing volume of up to 1000*1000*1000mm and is a fully enclosed industrial 3D printer designed for producing full-sized large parts, including high strength functional prototypes, factory fixtures, models and molds, as well as some production parts.
Supported by HIWIN linear guides, durable custom CNC parts, and Mingda's self-developed slicing software, the MD-1000D consistently delivers fast printing speeds, high precision, and good print quality. If you are looking for an industrial-grade large-scale 3D printer for prototyping and engineering-grade materials, MD-1000D is undoubtedly your best choice.
MINGDA MD-1000D tech specs

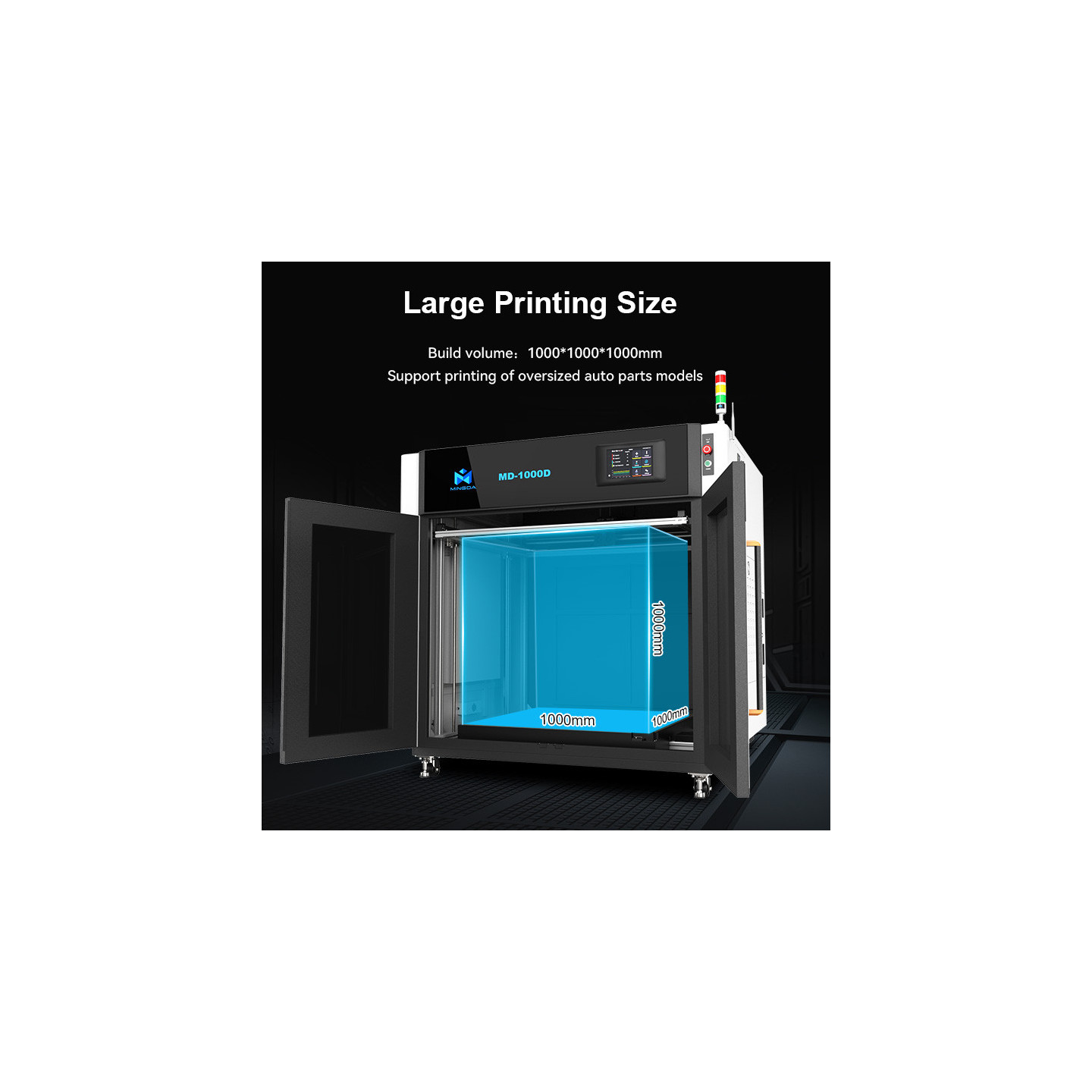

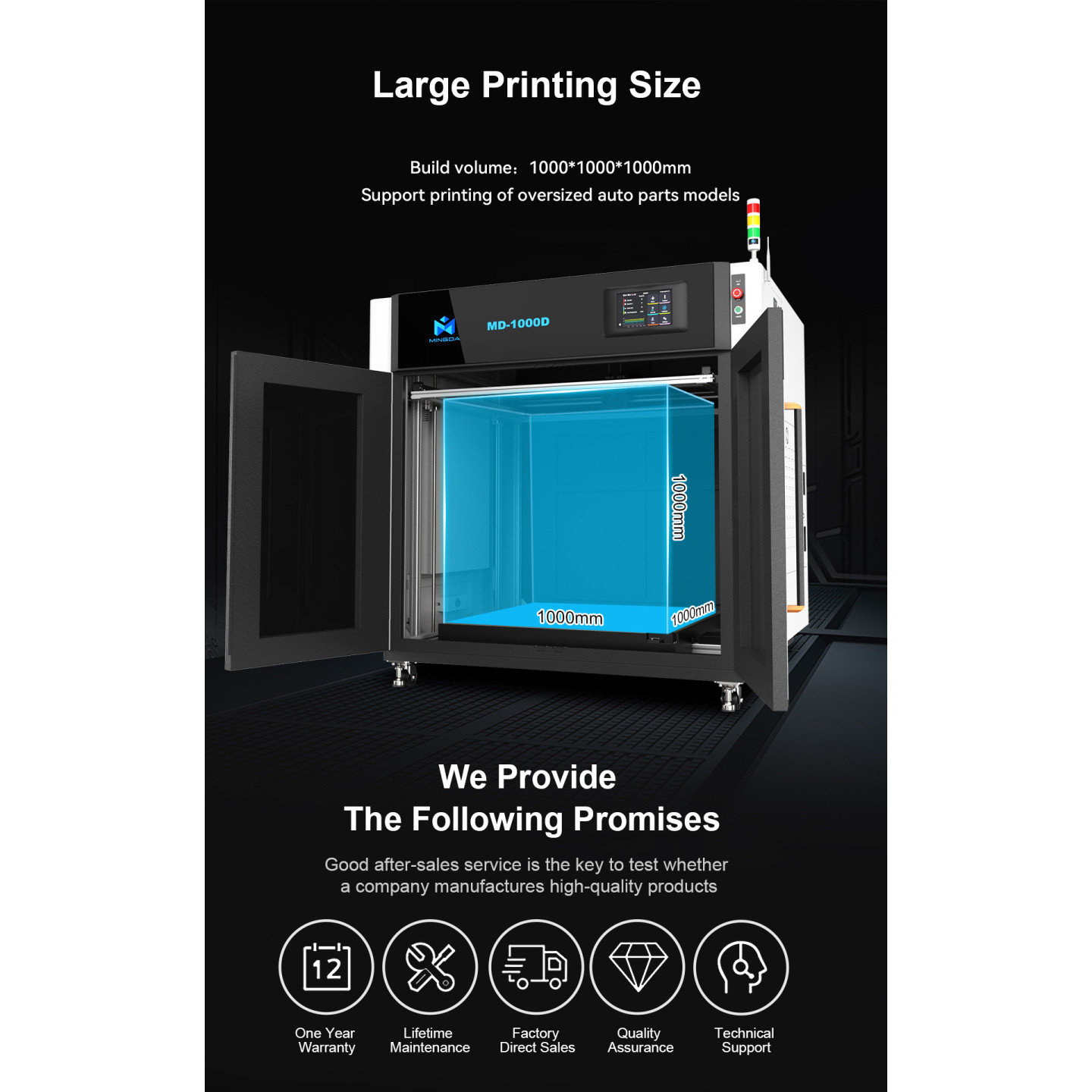

Printing volume 1000 x 1000 x 1000 mm
Maximum printing speed 500 mm/s
Maximum printing acceleration 10000 mm/s²
.jpg)
.jpg)
High Precision, Fast Printing of Large Complex Industrial Parts
5X Speed, Breakthrough in Printing Efficiency Once Again
MD-1000D printing speed up to 300mm/s, 10000mm/s ² Peak acceleration, only 0.02s speed up form 0 to 250mm/s, achieving ultra-high efficiency printing.
300mm/s
Travel speed
200mm/s
High-Speed
40mm³/s
Max Flow
.jpg)
.jpg)

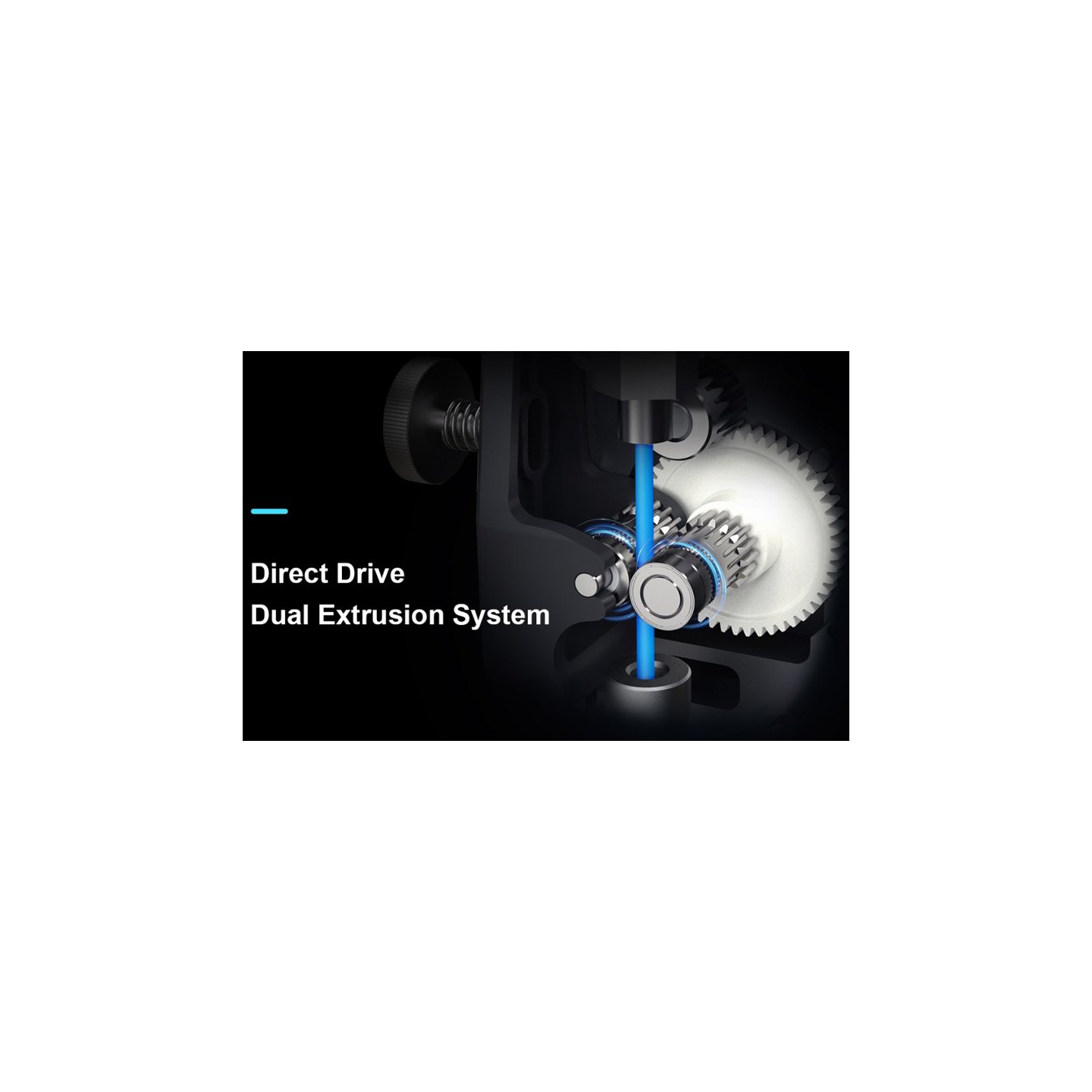

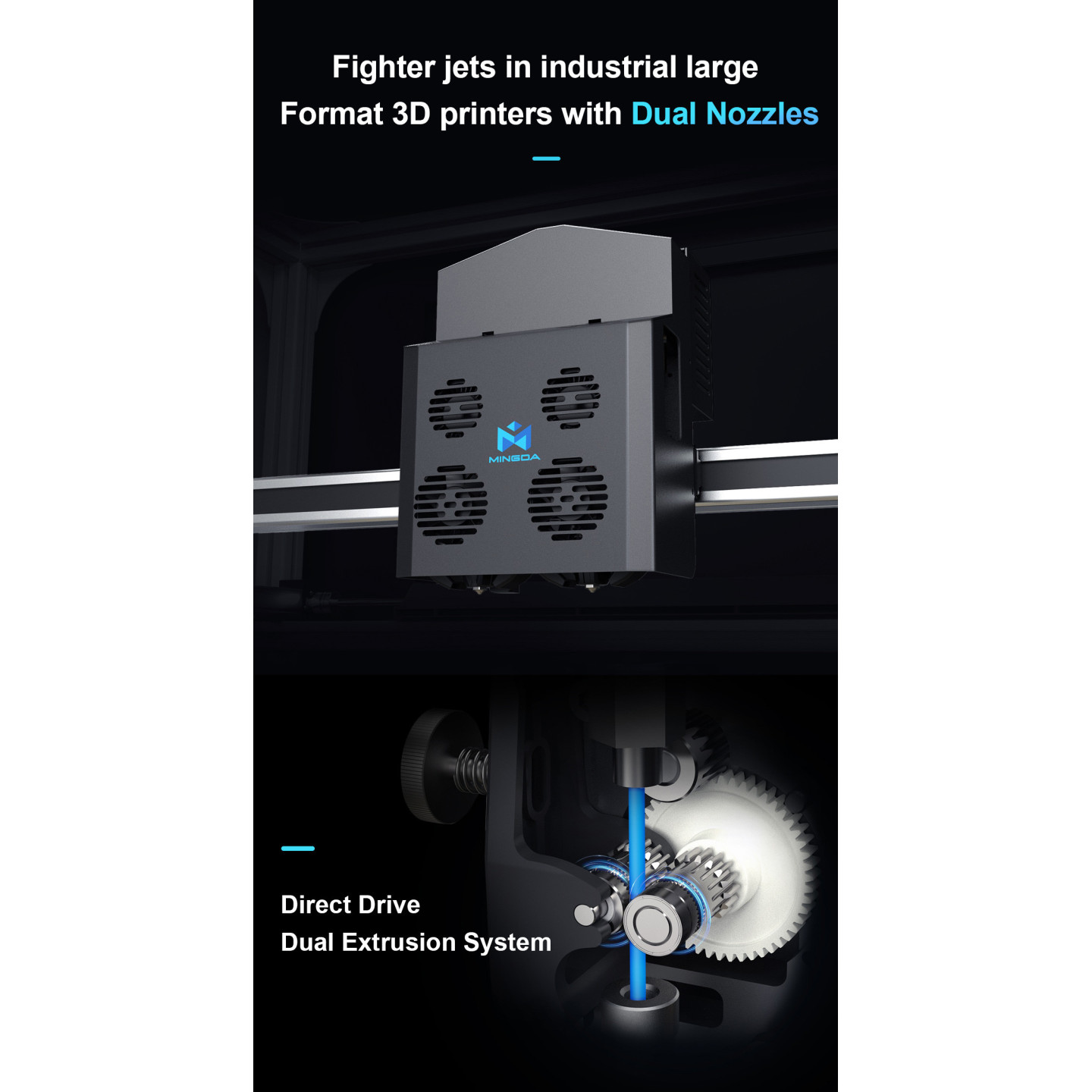

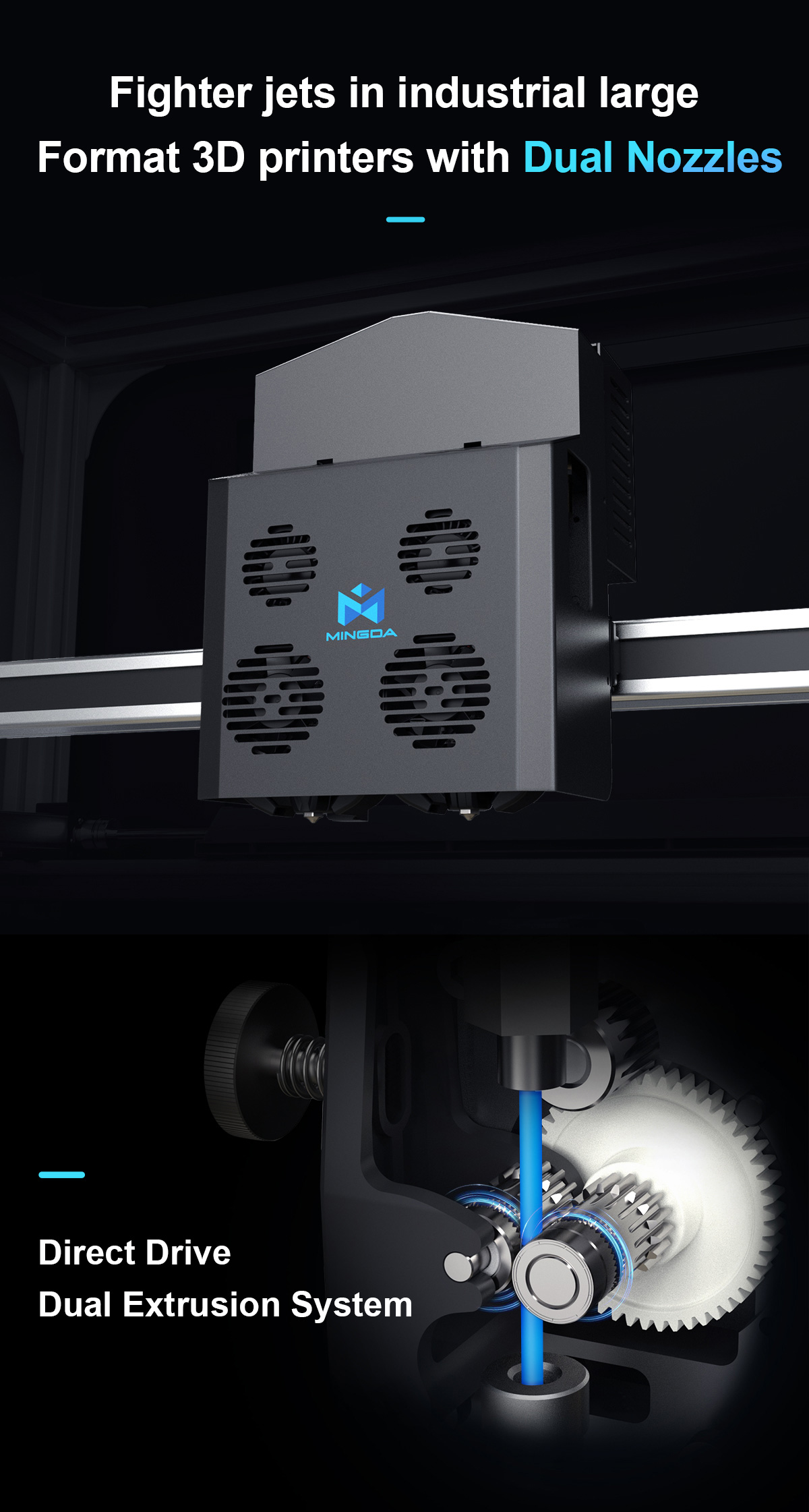

Dual Printheads Assits in Printing Complex Structural Models with Remarkable Precision.
This support-focused feature enables users to print with high-performance materials and breakaway materials. Complex models with overhanging elements often require support structures, and this is especially true when working with advanced materials. By utilizing the second extruder for support printing with a breakaway filament, the MD-1000D simplifies support removal, ensuring a smooth and successful printing experience
.jpg)
.jpg)
3D Printer Materials Suitable for Your Applications
The hot end temperature can reach up to 350℃, allowing for the printing of engineering-grade materials such as carbon fiber, glass fiber, nylon composites, in addition to common materials
.jpg)
Automotive Wheel Hub Printing
PET-CF + Breakaway Support
High Accuracy at Fast Printing Speeds

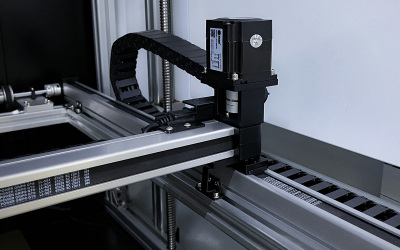

● High Precision
Using HIWIN linear rails structure and closed-loop motor design to ensure the stability and accuracy of the printing process
● Closed-loop Motors
Using a closed-loop motor, it has fast response speed, no inertia and no delay. Closed-loop control overcomes the out-of-step problem. Heat and noise are significantly reduced. It enables printing models with ultra-high performance and speed.
Exceptional Stability in Long-time Printing

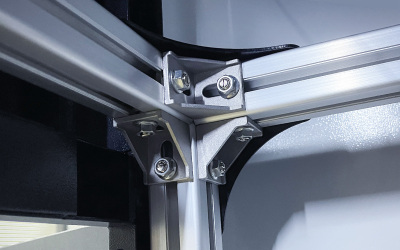

● Customized CNC sheet metal integrated molding
Ensures the stability of the machine, greatly extending its lifespan. High-quality profiles and hardware guarantee sustained and efficient operation of the machine. MINGDA 3D printers, developed since 2012, have been in operation for over 11 years, with each machine averaging over 35,000 hours of printing time, showcasing unparalleled stability.
Super Easy to Use

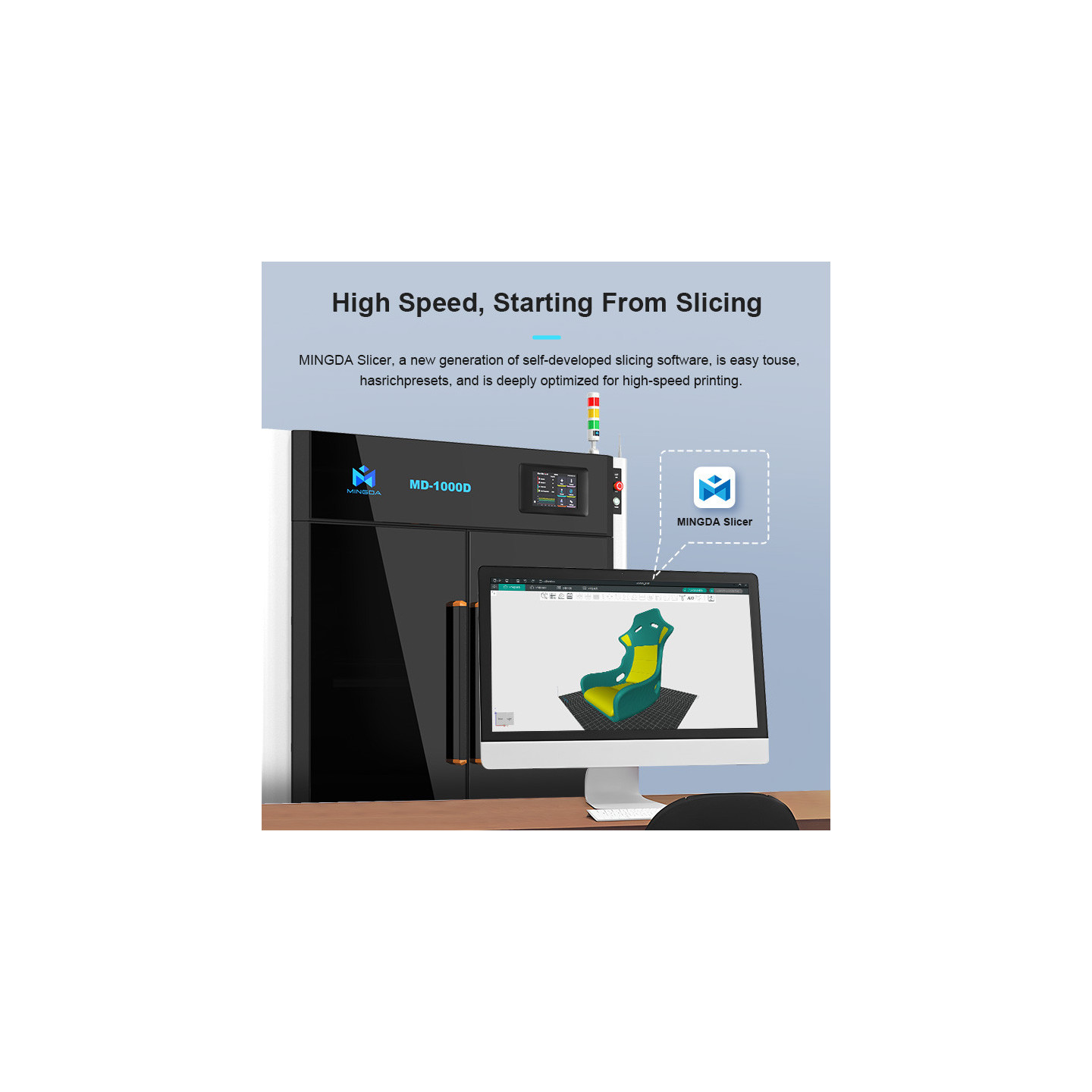

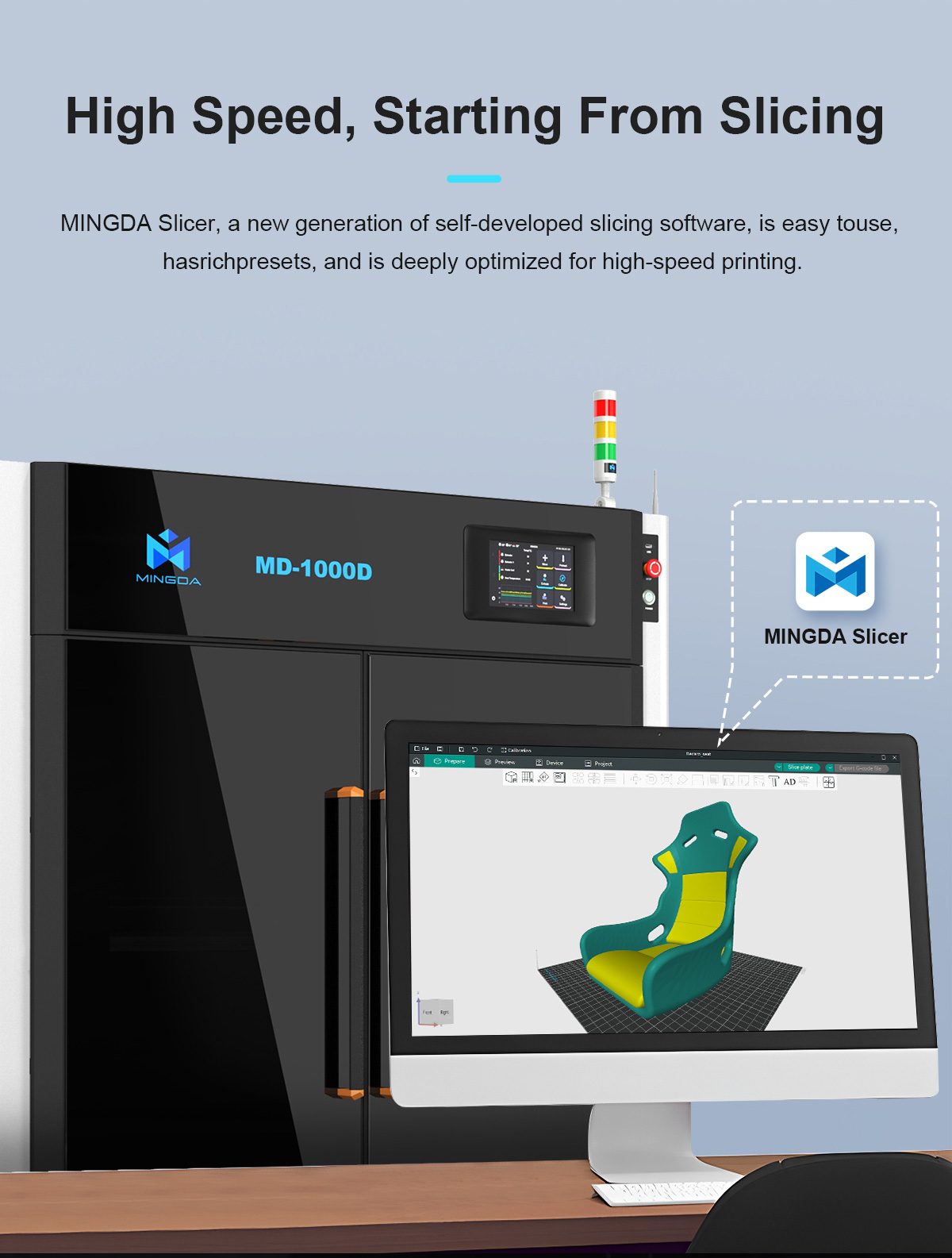

● MINGDA OrcaSlicer
MINGDA OrcaSlicer is a next-generation slicing software independently developed by us. All slicing profiles for materials have been rigorously tested and validated by our engineers within the MINGDA OrcaSlicer software. No parameter adjustments are needed before printing. Enjoy effortless, high-quality printing.
● Ready to Print
Fully assembled and calibrated to its optimal state before leaving the factory. Upon receiving the machine, simply plug it in and start using it without requiring any prior experience.
Remote Printing Multi-Machine Control
After being connected via WiFi or network cable, the MD-1000D can be remotely printed and monitored in real time. At the same time, it also supports multi machine control, facilitating rapid mass production.

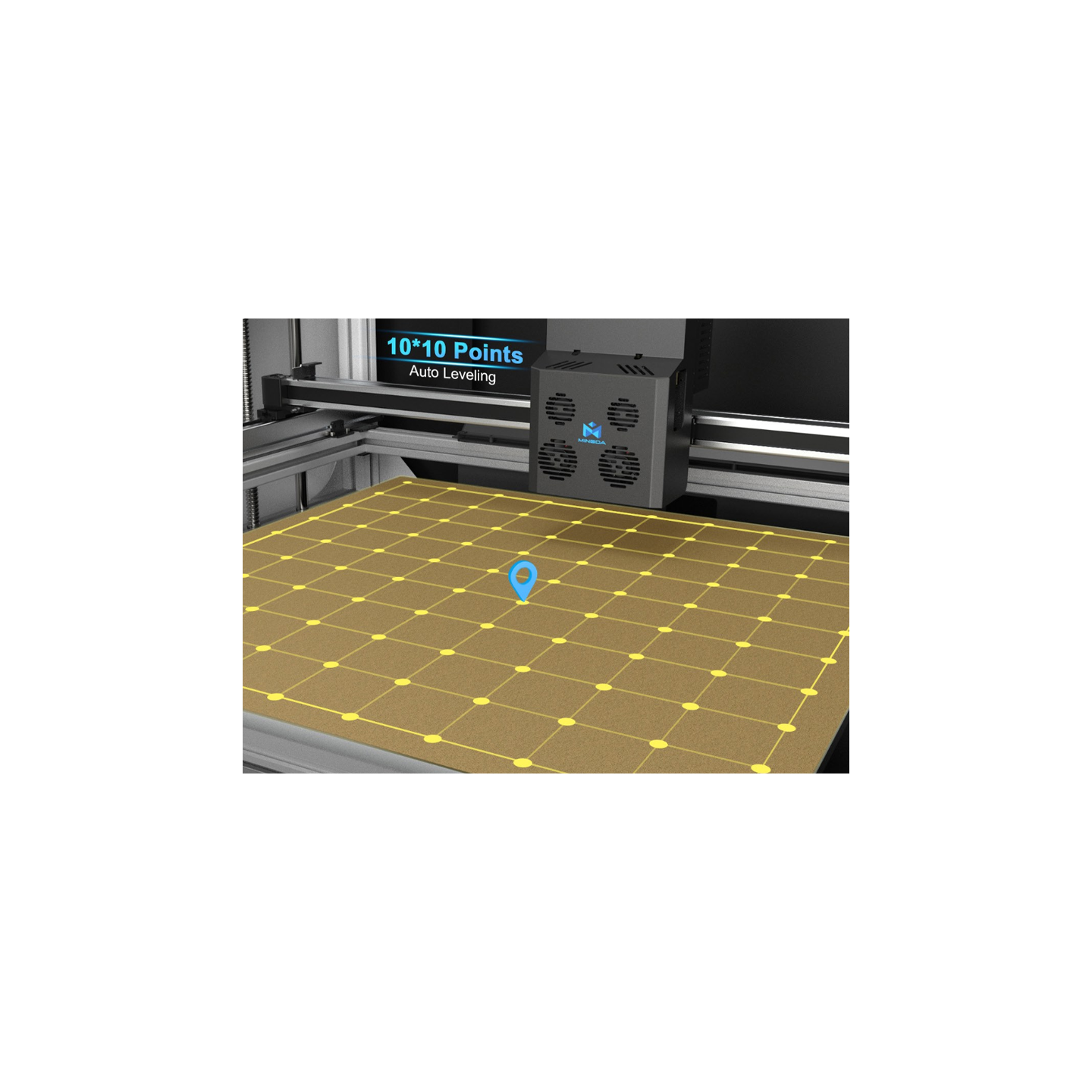

Hands-Free Auto Leveling
Making preparation before printing more convenient, Accurate first layer detection.

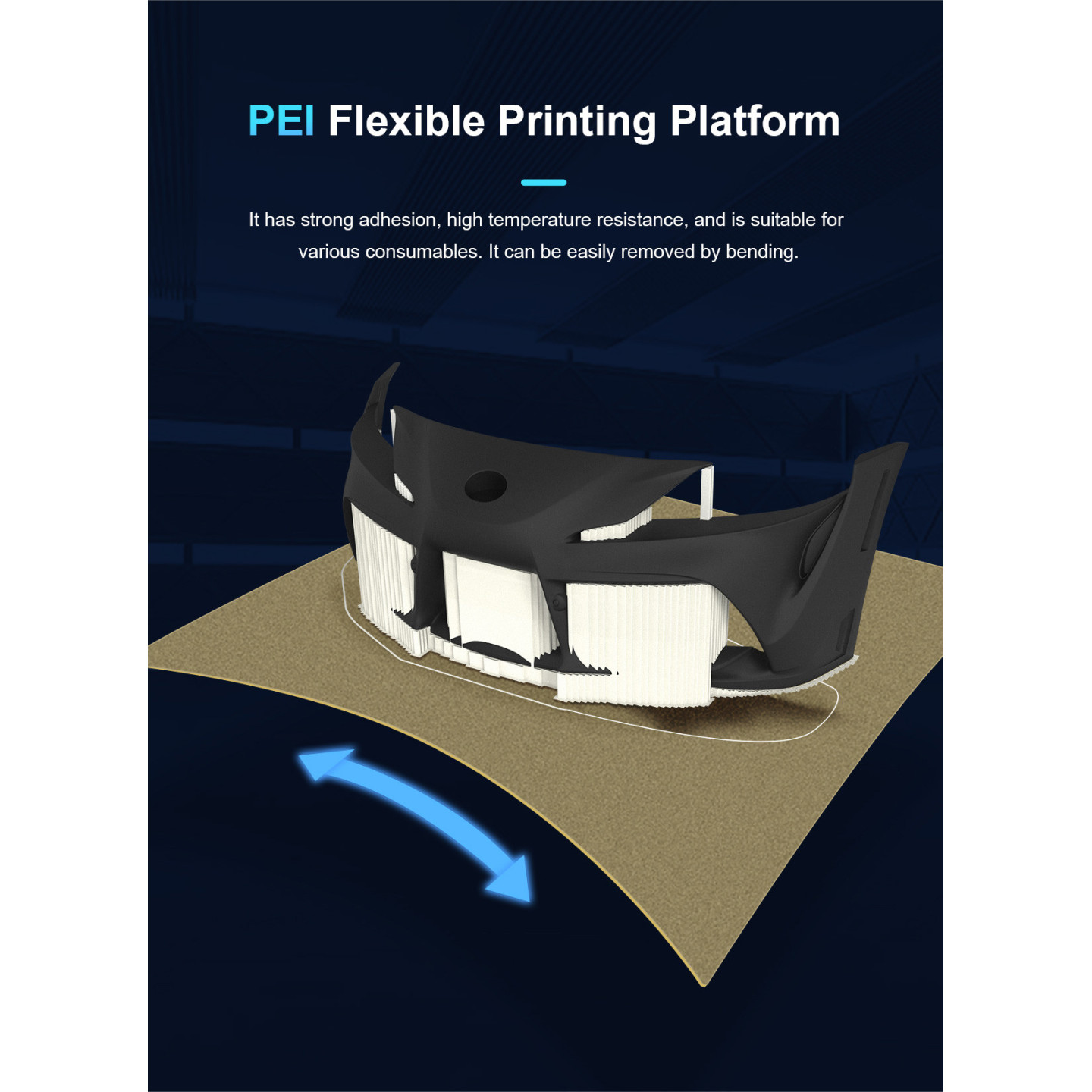

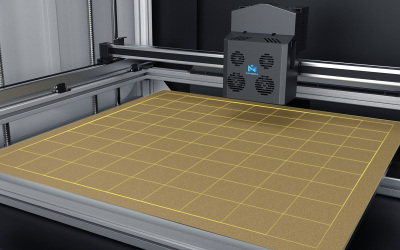

PEI Flexible Printing Platform
It has strong adhesion, high temperature resistance, and is suitable for various consumables. It can be easily removed by bending.
MINGDA Self-Developed Core Hardware
● Delivers Speedy Smooth Performance.
This high-performance 64-bit self-developed motherboard, powered by the 6-core CPU, ensures fast processing of data and rapid completion of 3D printing tasks. With 32GB of memory, you can quickly store, export, and print large files with ease.

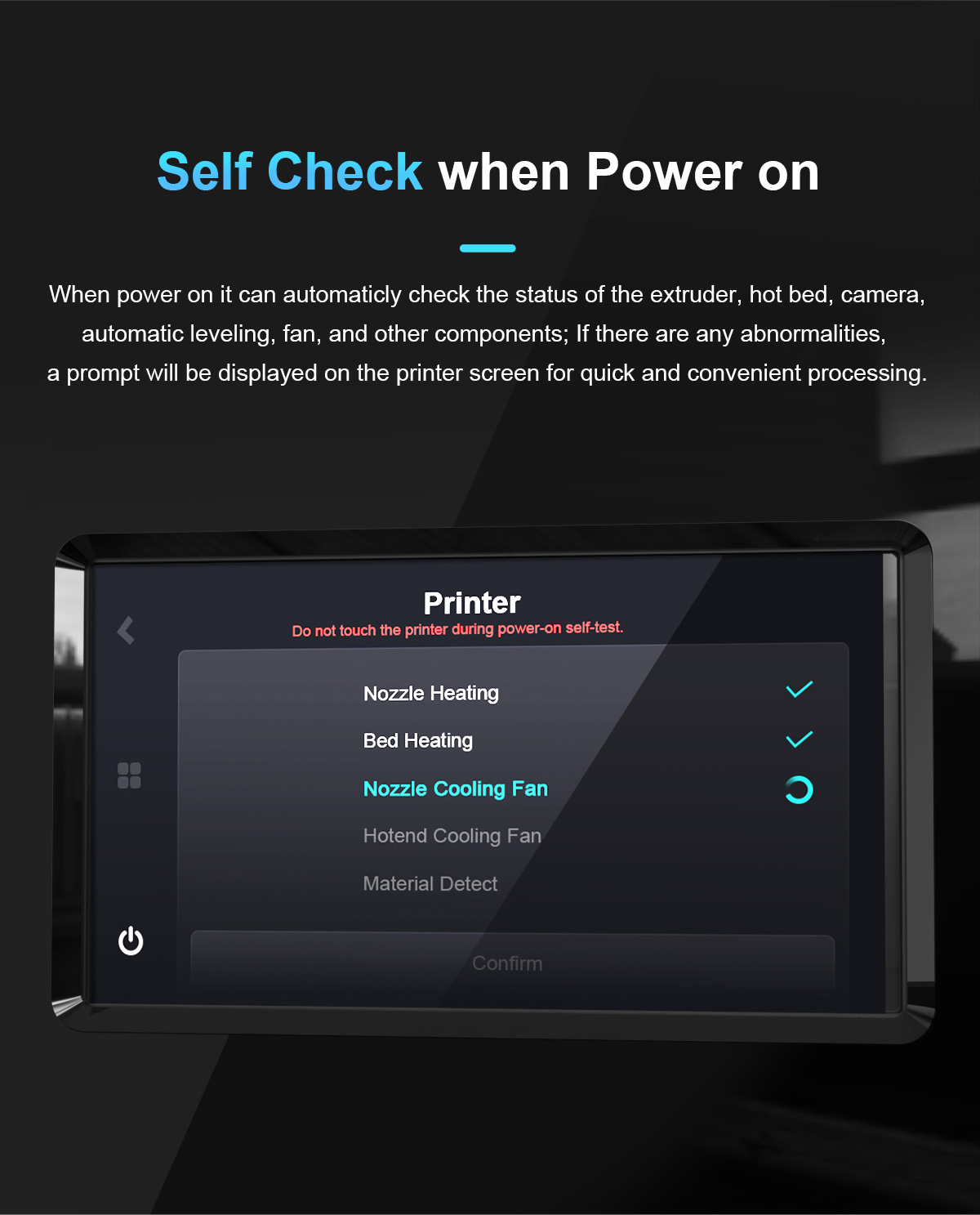

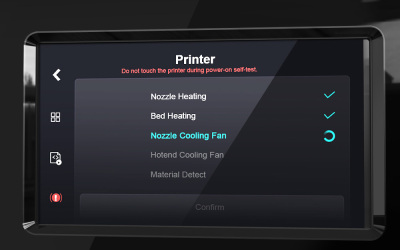

Self Check When Power On
When power on it can automaticly check the status of the extruder, hot bed, camera, automatic leveling, fan, and other components; if there are any abnormalities, a prompt will be displayed on the printer screen for quick and convenient processing.

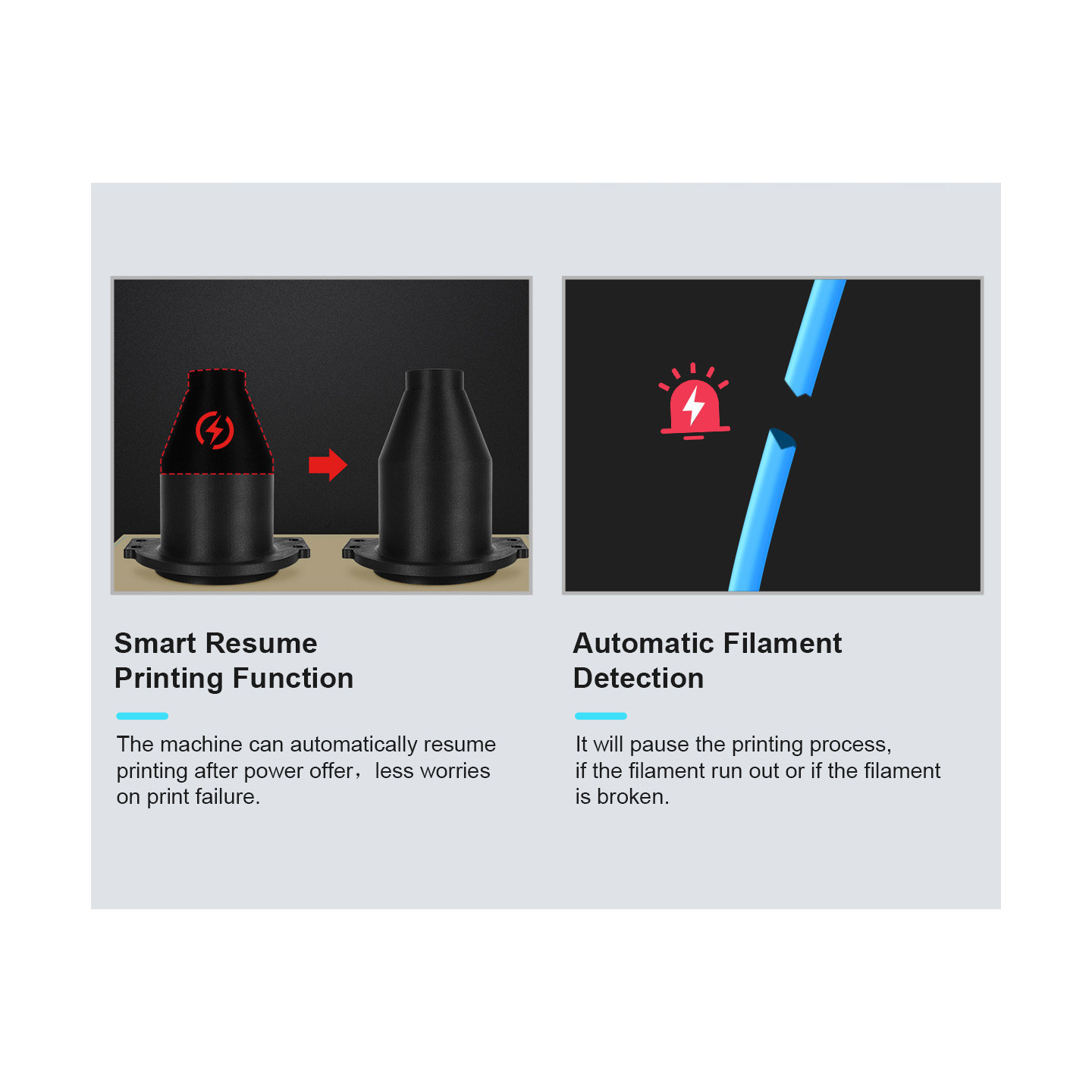

Resume Printing and Filament Detection
The printer will automatically remember its current position and save printing data. In the event of a sudden power outage, it will lower the platform and retract the filament. Upon power restoration, it will resume seamless printing from the last stopping point.
When filament runs out, the printer will stop printing and issue a warning to replace the filament, preventing wasted prints.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

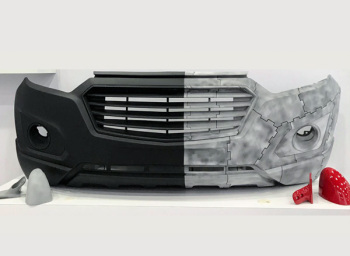

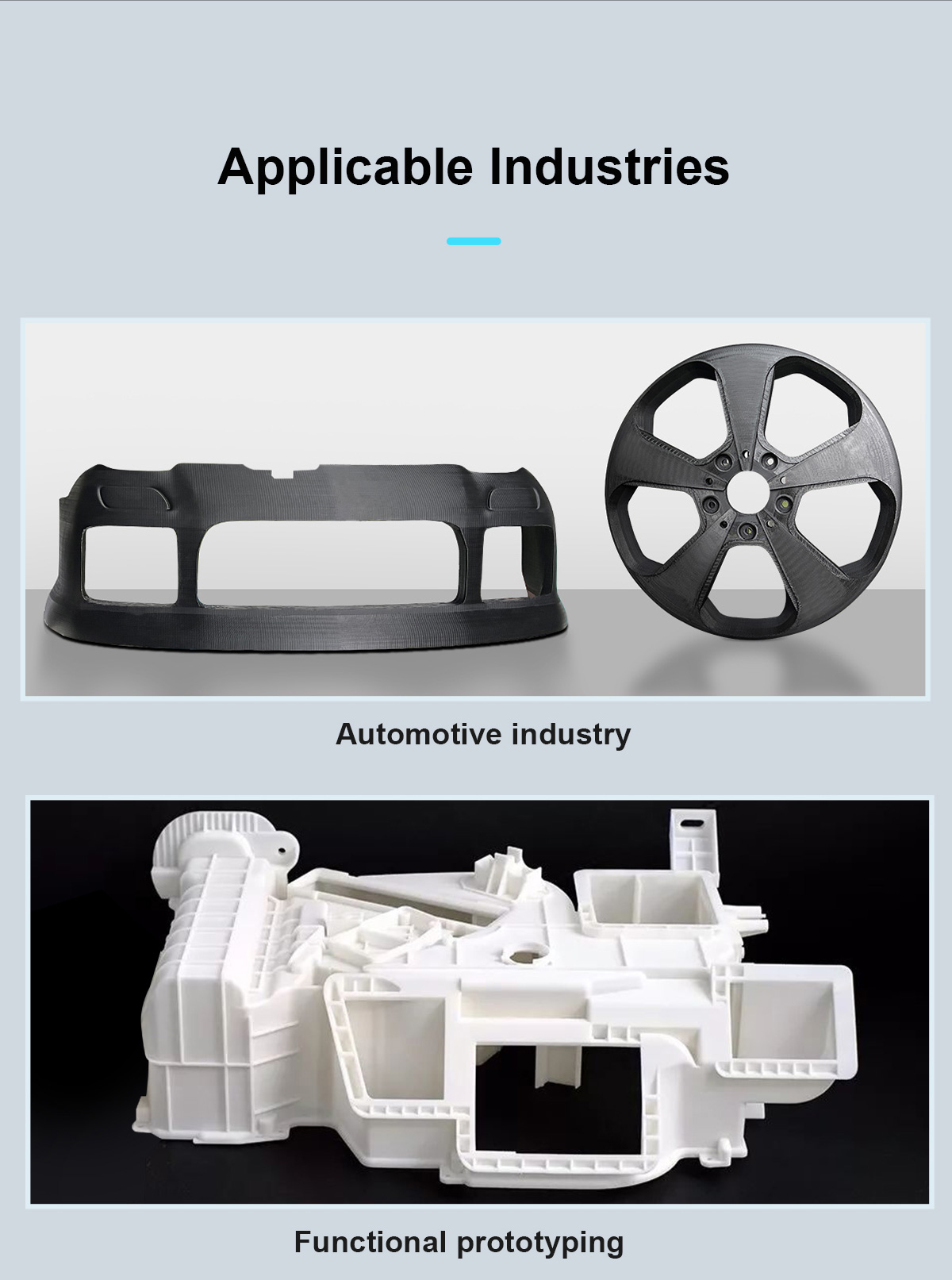

Automotive industry
Gas and Fluid-Carrying Components
Product Parameters
Model
MD-1000D
Print Technology
Fused Deposition Modeling(FDM)
Print Volume
1000 * 1000 * 1000 mm
Machine Dimensions
1710*1365*1665mm
Extruder Type
Dual Extruders
Nozzle Diameter
0.6mm (0.4, 0.8 optional)
Max Extruder Temperature
≤350°C (Recommended temperature ≤320 ℃)

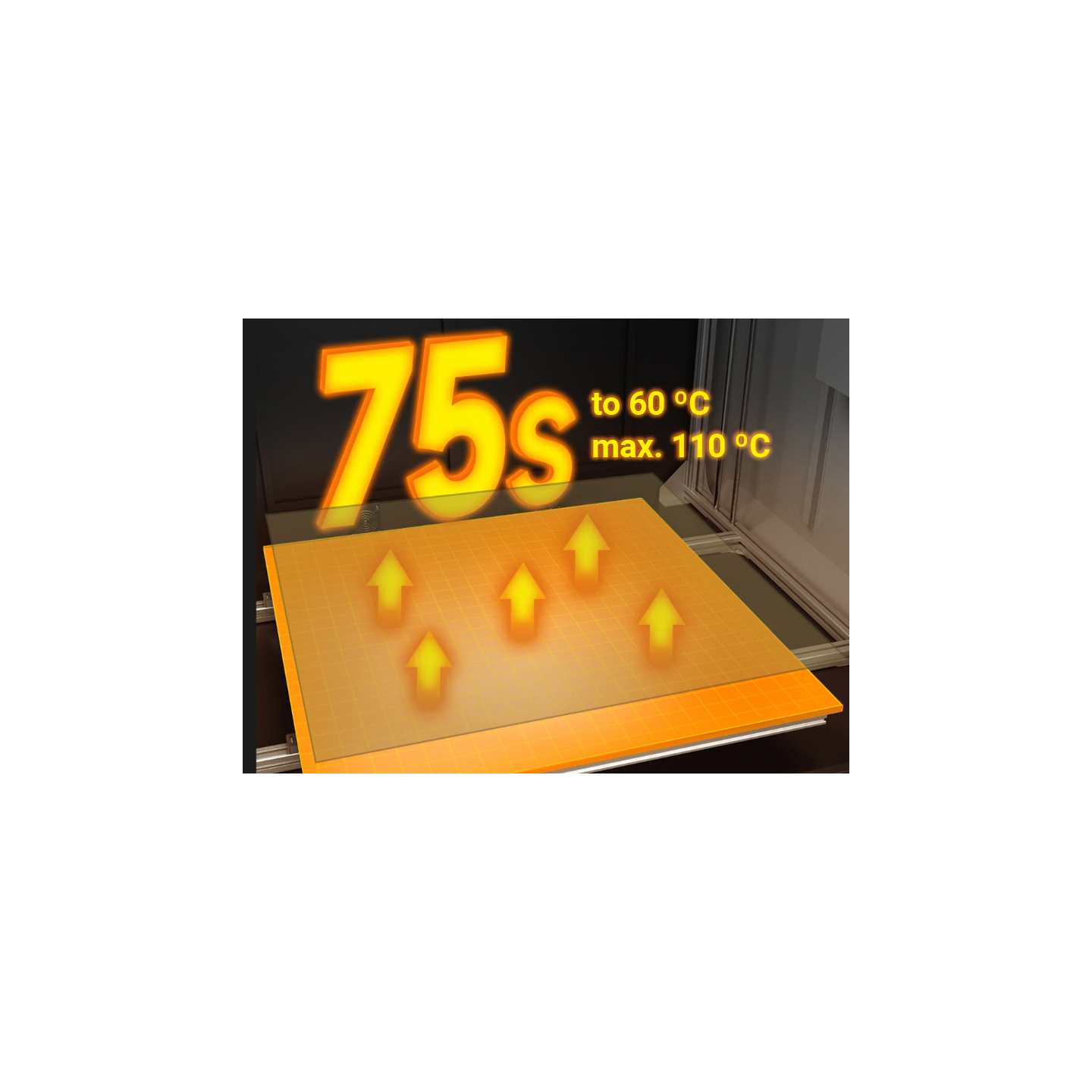

Platform Temperature
≤110°C
Max Flow
40mm³/s
Max Print Speed
300mm/s (Recommend Printing Speed: (PLA) 200mm/s; (PETG) 180mm/s; (PET-CF) 100mm/s)
Support Software
MINGDA Slicer
Display Screen
10-inch HDMI touch screen
Input Voltage
220V 50/60Hz
Rated Power
3100W
Firmware
Klipper
Filament Compatibility
Common filament: PLA, PETG;
Engineering filament: PET-CF/GF, HtPA-CF/GF, HtPA-GF25/CF25;
Support filament: S-Mulit, S-HtPA, etc
3D Printer MINGDA MD-1000D

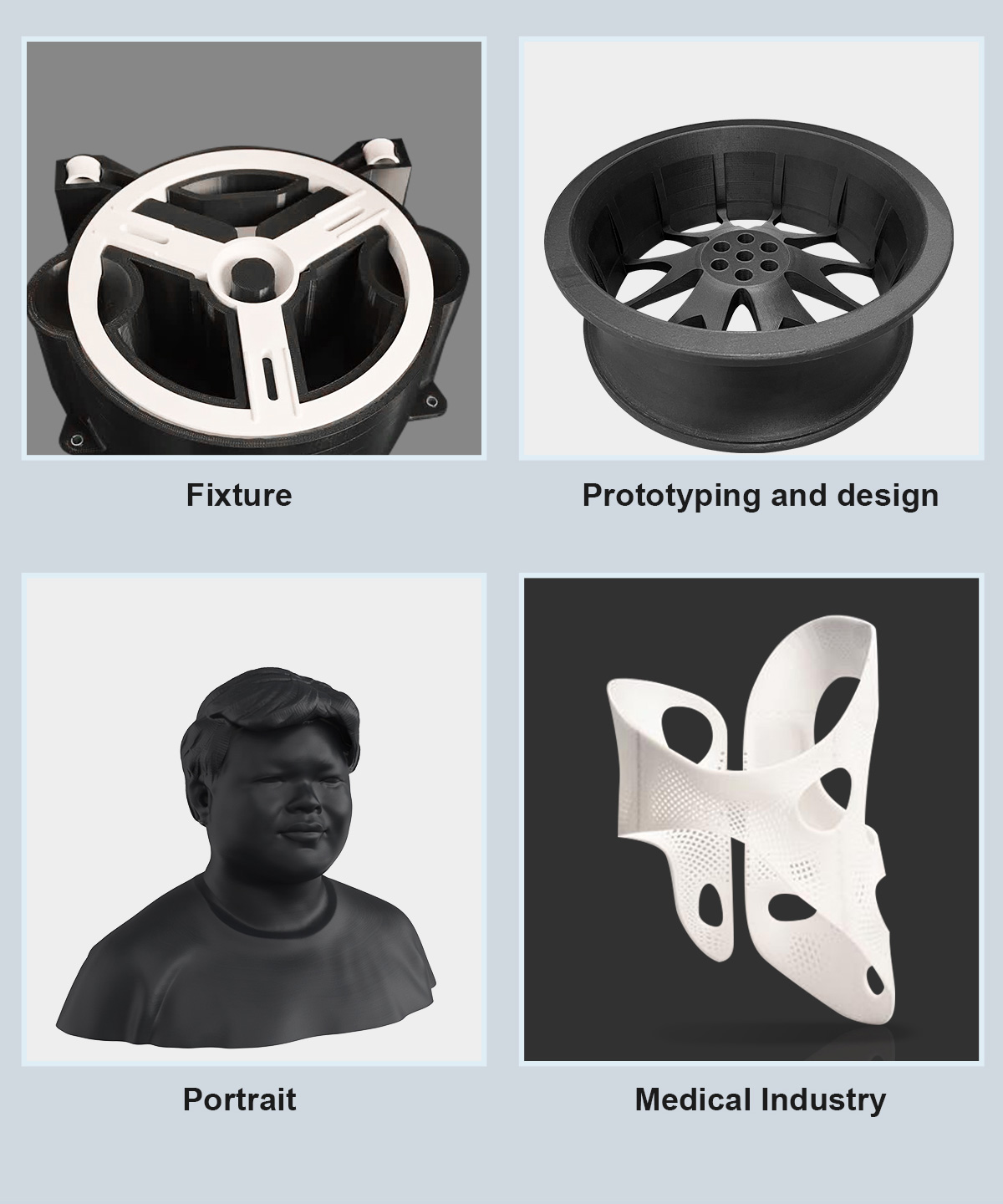

MD-1000D is a professional industrial device to meet the needs of engineers and manufacturers who need to produce large-sized parts without dividing them by printing with filaments that require a high melting temperature, combined with the ability to work with multiple materials at the same time and print at high speed. The printer is equipped with air purification filters that allow the device to be used in any work space. Applicable from automotive industry, functional prototyping, medical industry, to high quality hobby printing.
Features
5x faster printing
Dual extruder
Dual nozzles (Print on 2 colours)
Supports water soluble filament support
Smart resume printing function
Automatic faulty filament detection
Self check when power on
Multiple language touchscreen

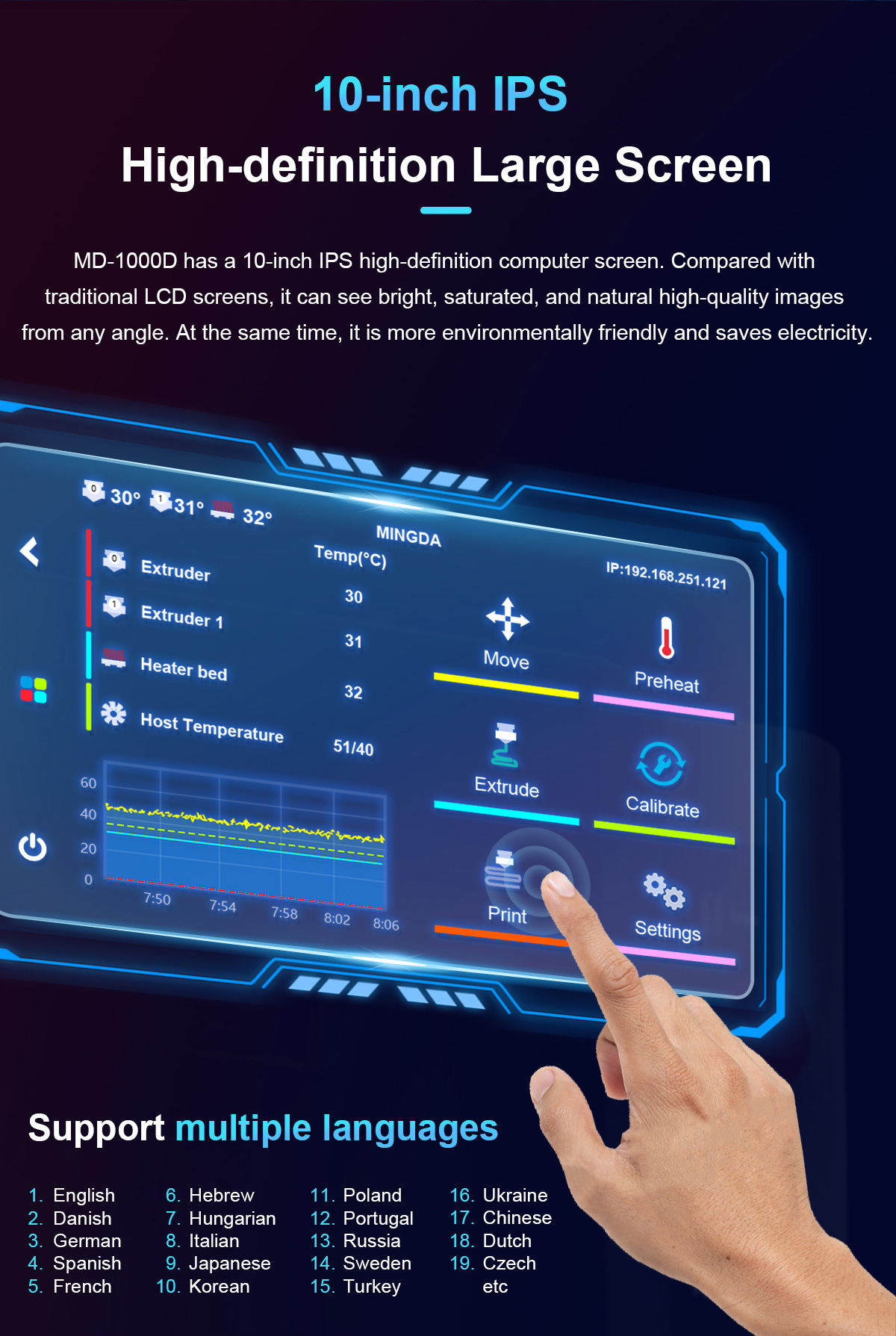

10" High definition screen
Mingda self developed core hardware
32GB memory
PEI printing plattform

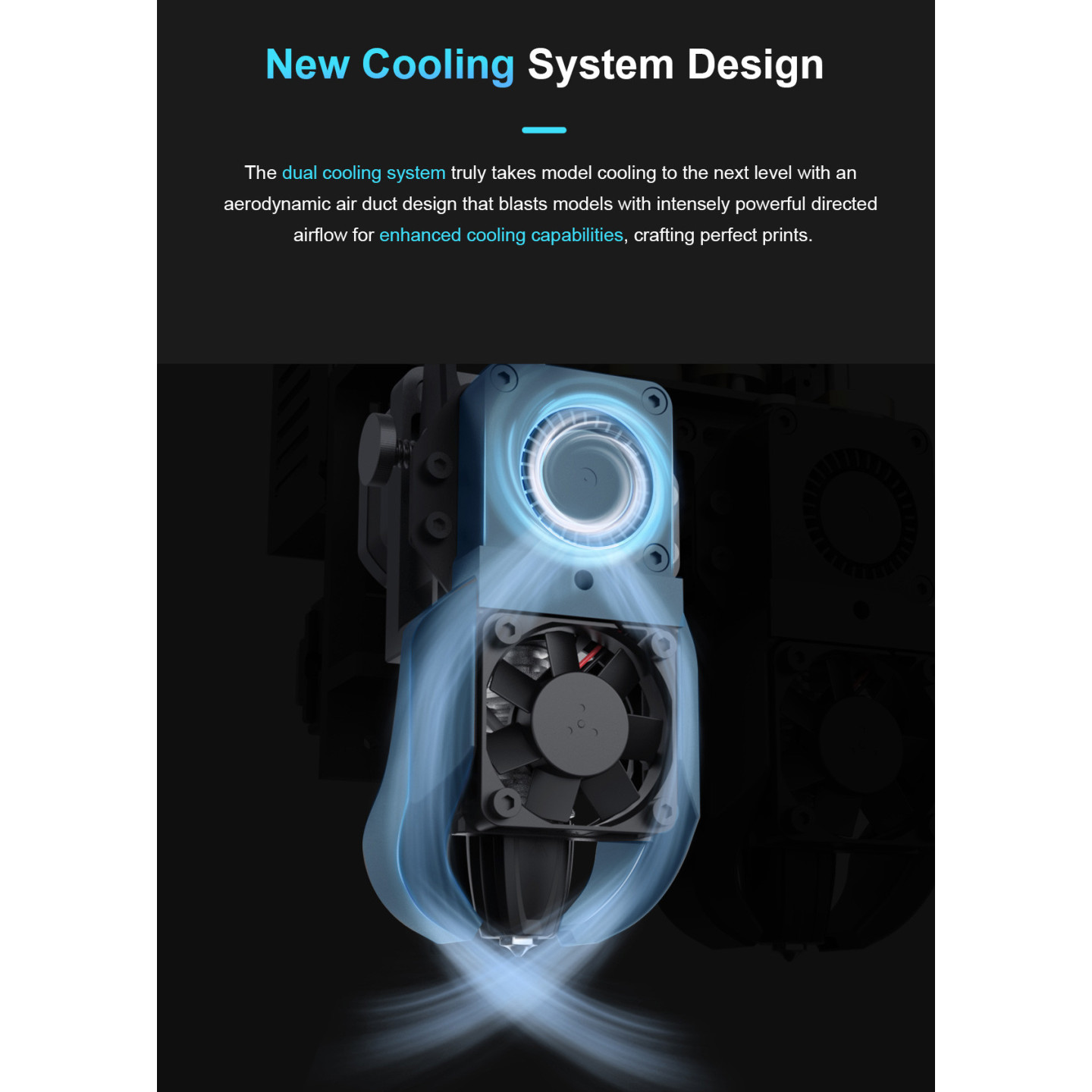

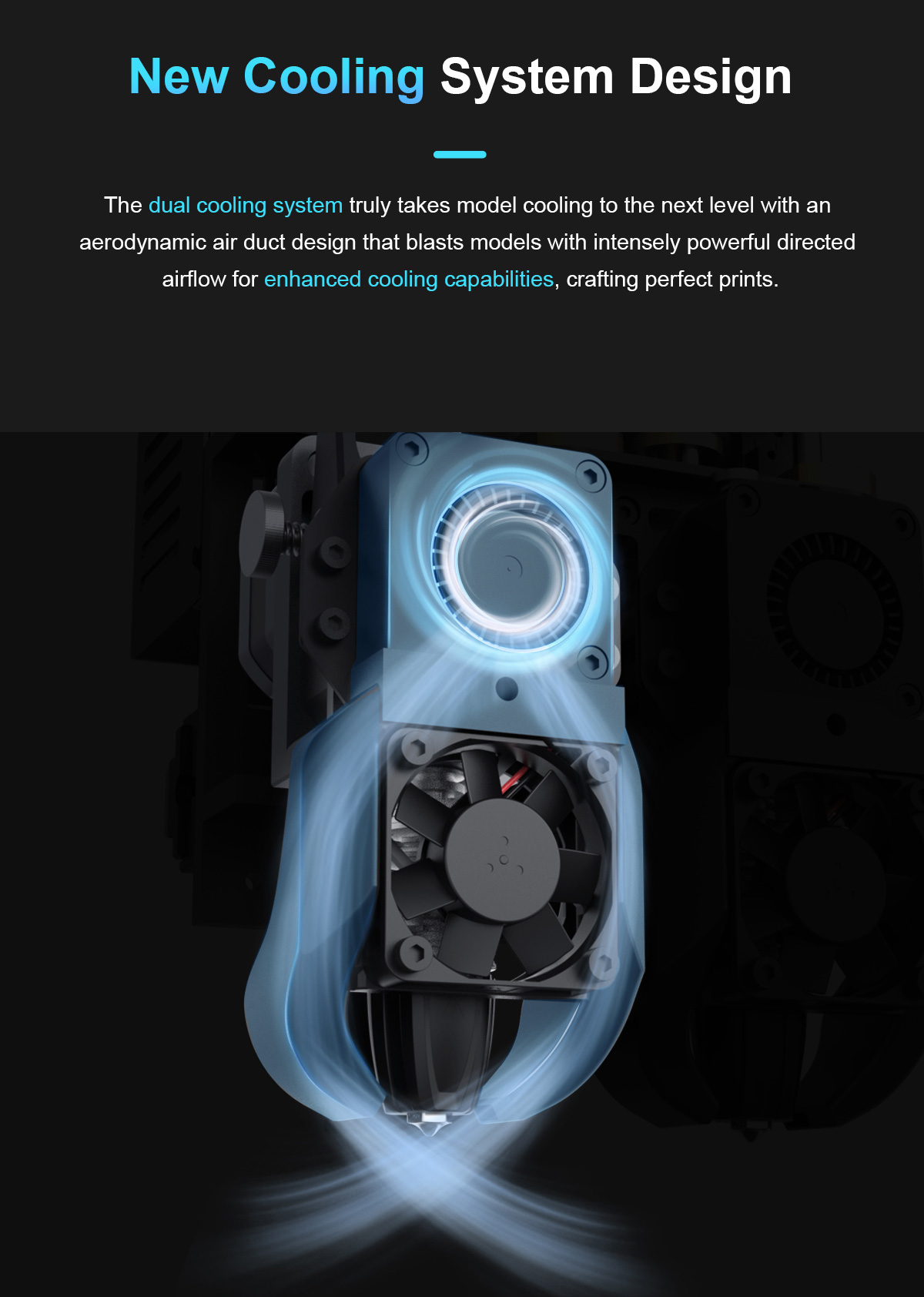

Mingda dual fast cooling system
Remote printing multi machine control
Large printing size
Auto leveling

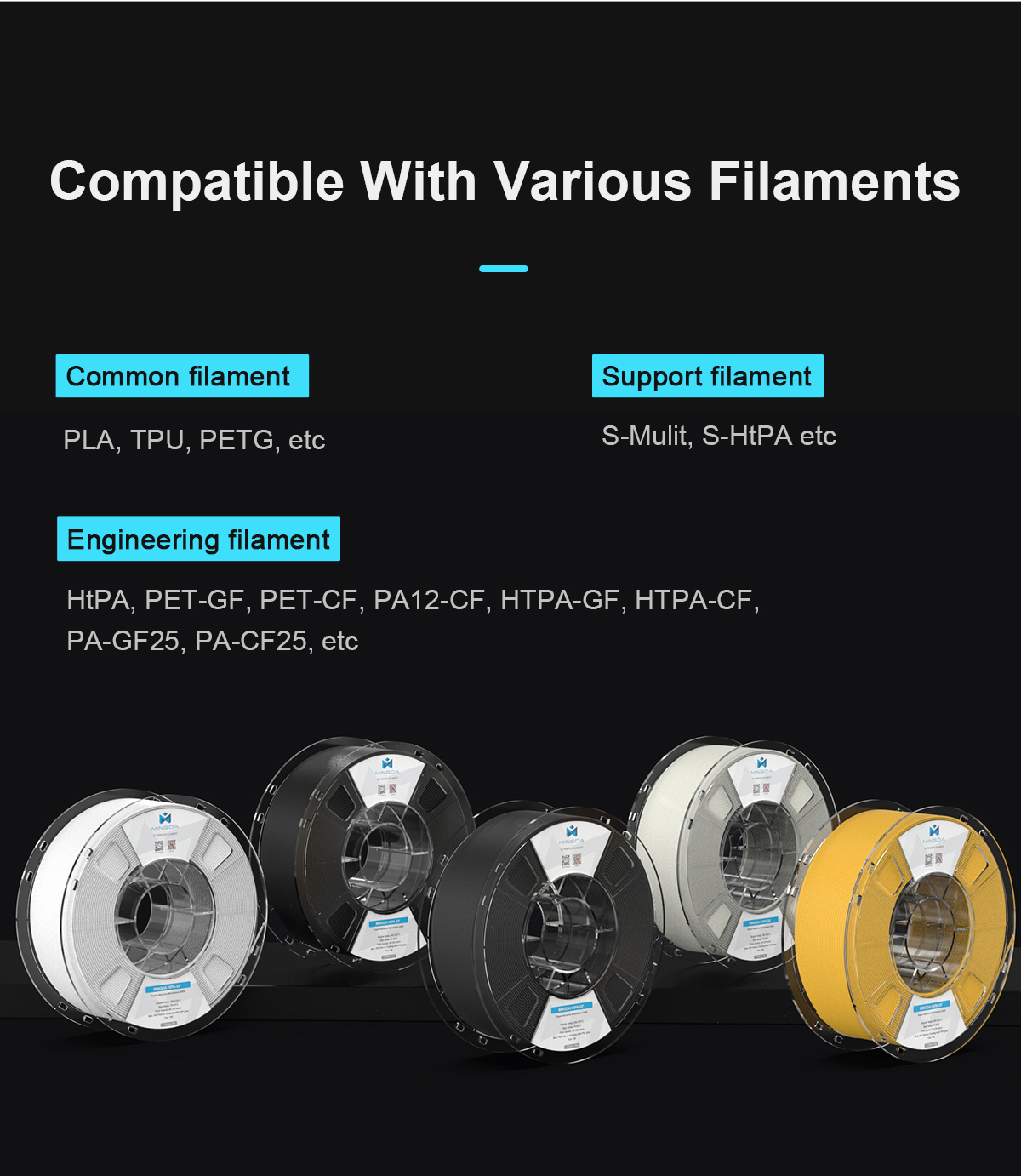

Wide variety of filaments supported
Common filament (PLA, TPU, PETG, etc)
Support filament (S-Multi, S-Ht-PA, etc)
Engineering filament (HtPA, PET-GF, PET-CF, PA12-CF, HTPA-GF, HTPA-CF, PA-GF25, PA-CF25, etc)
...
...
...
...
...
...
