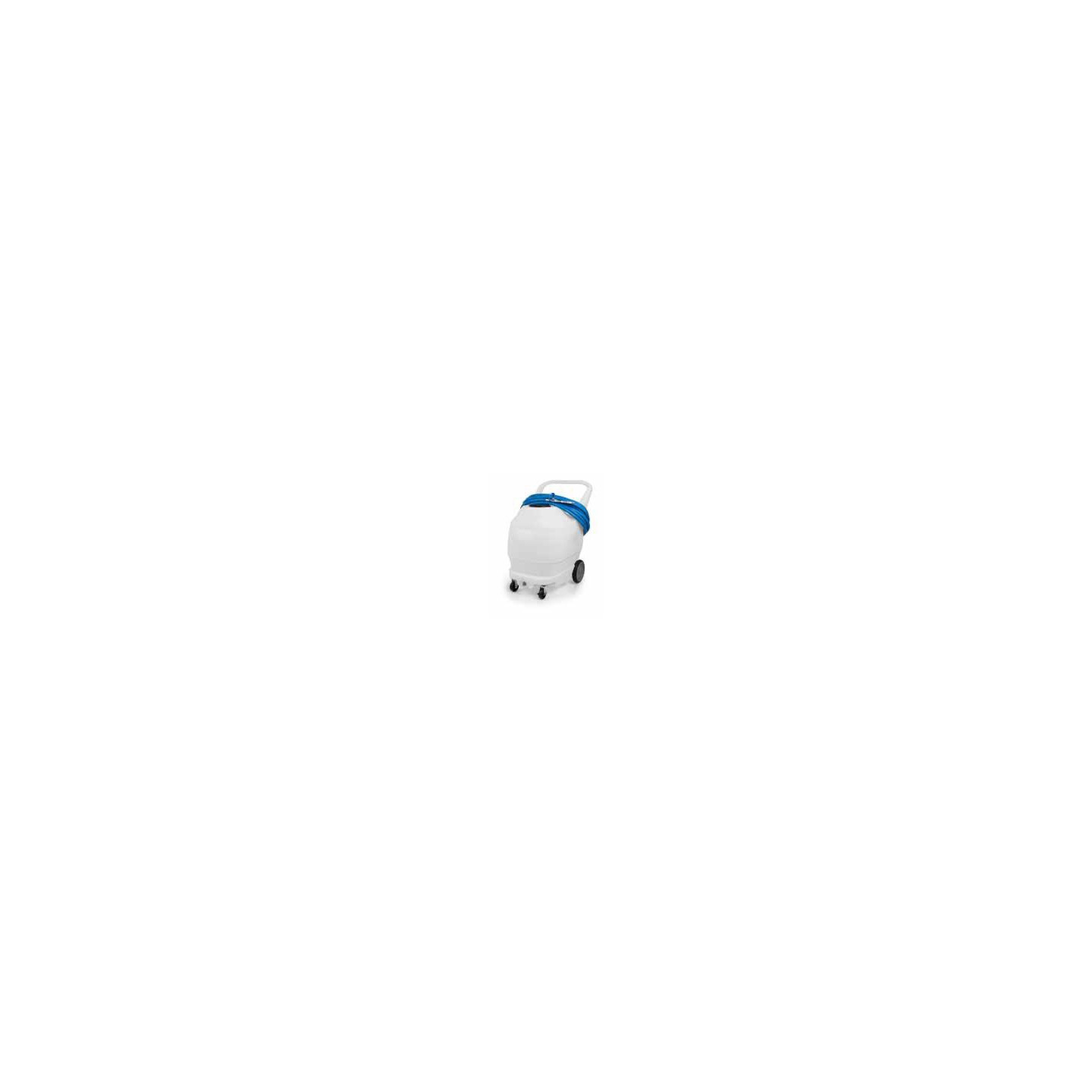

FI-50N-FOAM – Portable Foam Application Unit (50 Gallon / 189.3 L)
Portable Pre-Mix Foam System
The FI-50N-FOAM is a high-capacity professional portable foam application unit featuring a 50-gallon (189.3-liter) tank, designed for applying cleaning and sanitizing chemicals in foam form. Powered by compressed air and using a pre-mixed (Pre-Mix) solution, it delivers thick, stable, and uniform foam coverage even across large industrial areas.
This model is designed for intensive professional use where maximum capacity, long continuous operating cycles, and minimal refilling are required. It is widely used in food processing, agriculture, logistics, heavy equipment washing, and industrial sanitation environments.
The unit is equipped with a transparent tank for easy solution level monitoring, a front-facing drain valve for quick emptying, and an integrated hose storage system. Anti-kink hose protection ensures smooth flow and prevents hose damage, while the built-in in-line strainer protects the pump from debris and particles, reducing maintenance requirements and extending service life.
The FI-50N-FOAM is designed for easy maintenance, featuring a hinged back plate for quick access to internal components and a quick-change pump system that minimizes downtime. The unit can be customized for different chemical applications by selecting appropriate pump seal materials (Santoprene, Viton, or Kalrez), as well as optional color-coded hoses and lids.
Key Features
- Powered by compressed air
- Uses a pre-mixed chemical solution (Pre-Mix system)
- Extra-large 50-gallon (189.3 L) tank capacity
- Transparent tank for easy solution level monitoring
- Front-facing drain valve for convenient emptying
- Anti-kink hose protection
- In-line strainer for pump protection
- Integrated hose storage system
- Hinged back plate for easy maintenance
- Quick-change pump system
- Customizable configurations for chemical compatibility
- Suitable for heavy-duty industrial cleaning and sanitizing applications
Technical Specifications
| Parameter |
Value |
| Model |
FI-50N-FOAM |
| Tank Capacity |
50 Gallons (189.3 L) |
| Operating Principle |
Pre-Mixed Solution |
| Power Source |
Compressed Air |
| Recommended Operating Pressure |
40–80 PSI (2.8–5.5 Bar) |
| Maximum Operating Pressure |
100 PSI (6.9 Bar) |
| Air Consumption |
5–10 CFM |
| Hose Length |
30–50 ft (9–15 m, depending on configuration) |
| Foam Projection Distance |
25–30 ft (7.6–9.1 m) |
| Solution Flow Rate |
2–2.5 gal/min (7.6–9.5 L/min) |
| Foam Output |
20–45 gal/min (75–170 L/min) |
| Mobility |
Heavy-duty industrial wheels with locking casters |
| Empty Weight |
~30+ kg |
| Full Weight |
~200+ kg |
Standard Equipment
- 50-gallon (189.3 L) tank mounted on heavy-duty wheels
- Reinforced hose (up to ~15 m depending on configuration)
- Stainless steel foam wand
- On/off ball valve
- Integrated hose holder
- Quick-change pump
- Built-in in-line strainer
- Anti-kink hose protection
- Operator’s manual
Typical Applications
- Large food processing facilities
- Dairy and beverage production plants
- Meat and seafood processing industries
- Large agricultural and livestock operations
- Logistics and warehouse centers
- Vehicle fleets and heavy equipment cleaning
- Industrial equipment sanitation
- HACCP-compliant hygiene and cleaning programs
FI-50N-FOAM Overview
The FI-50N-FOAM is the highest-capacity mobile foam system in the series, designed for maximum performance, extended runtime, and reliable operation in the most demanding industrial environments. It delivers consistent foam quality and high efficiency for large-scale cleaning and sanitation tasks.
