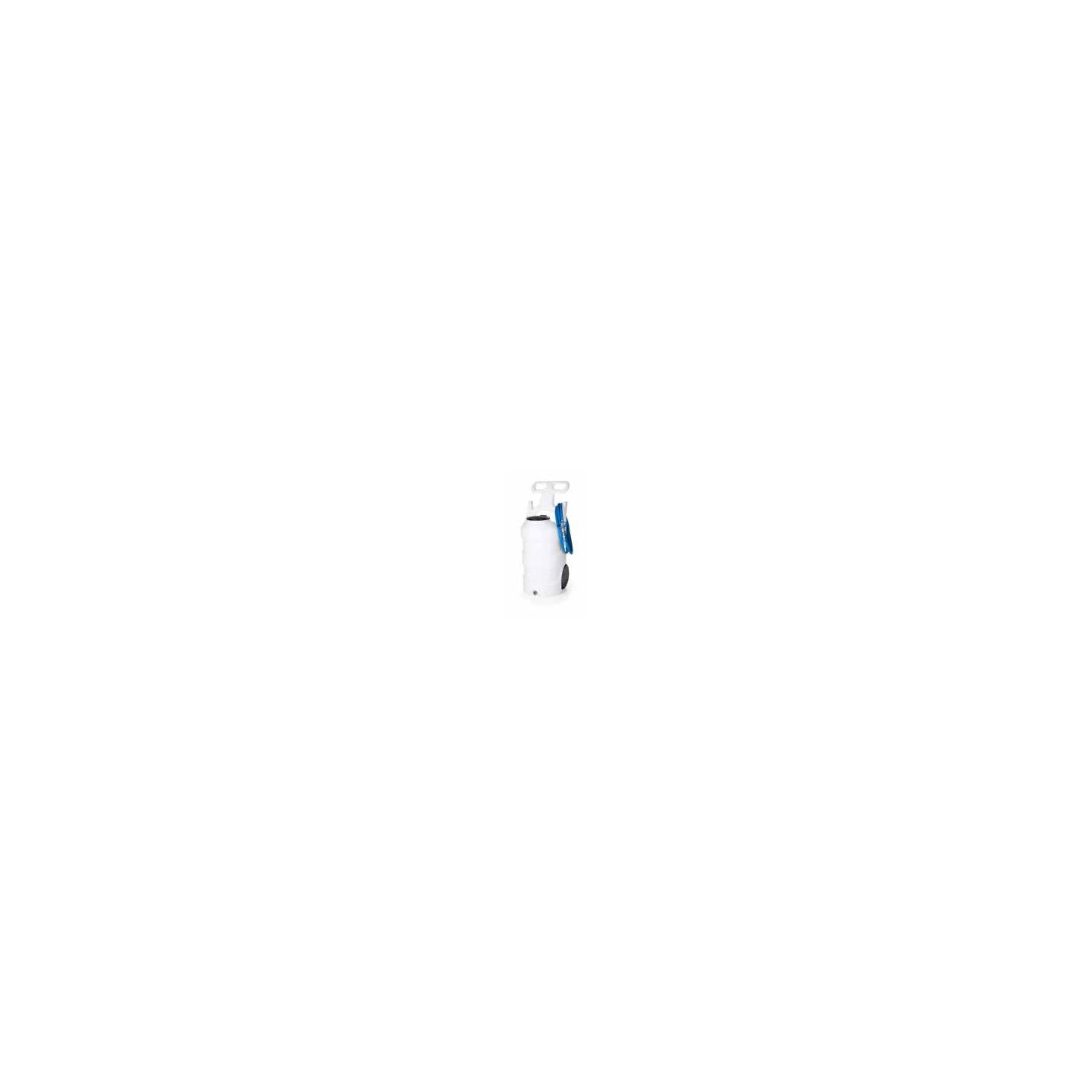

Portable Foam Application Unit 10 Gallon ( 37.9 L) FI-10N-FOAM Portable pre-mix unit
Atpakaļ
Nākošais
FI-10N-FOAM – Portable Foam Application Unit (10 Gallon / 37.9 L)
The FI-10N-FOAM is a professional portable foam application unit featuring a 10-gallon (37.9-liter) tank, designed for the application of cleaning and sanitizing chemicals in foam form. Powered by compressed air and utilizing a pre-mixed chemical solution, the unit generates thick, long-lasting foam for effective coverage of horizontal and vertical surfaces. It is ideal for food processing facilities, agriculture, vehicle washing, industrial cleaning, and sanitation applications.
The unit features a transparent tank for easy solution level monitoring, a front-facing drain valve for quick emptying, an integrated hose holder, and anti-kink hose protection to ensure uninterrupted operation. An in-line strainer protects the pump from debris and solid particles, helping to extend pump life and reduce maintenance requirements.
Designed with ease of maintenance in mind, the FI-10N-FOAM incorporates a modular construction with a hinged back plate for quick access to internal components and a quick-change pump system that minimizes downtime. The unit can be customized with different pump seal materials to suit specific chemical applications, as well as color-coded lids and hoses for improved process identification and hygiene management.
Key Features
- Powered by compressed air
- Uses a pre-mixed chemical solution (Pre-Mix system)
- 10-gallon (37.9 L) tank capacity
- Transparent tank for easy solution level monitoring
- Front-facing drain valve for convenient emptying
- Anti-kink hose protection
- In-line strainer for pump protection
- Integrated hose holder
- Modular design with hinged back plate for easy maintenance
- Quick-change pump system
- Customizable configurations for different chemicals and applications
- Suitable for professional cleaning, washing, foaming, and sanitizing operations
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FI-10N-FOAM |
| Tank Capacity | 10 Gallons (37.9 L) |
| Operating Principle | Pre-Mixed Solution |
| Power Source | Compressed Air |
| Recommended Operating Pressure | 40–80 PSI (2.8–5.5 Bar) |
| Maximum Operating Pressure | 100 PSI (6.9 Bar) |
| Air Consumption | 5–10 CFM |
| Hose Length | 20 ft (6 m) |
| Foam Output | 15–30 gal/min (57–114 L/min) |
| Solution Flow Rate | Approximately 2–2.3 gal/min (7.6–8.7 L/min) |
| Dimensions (L × W × H) | Approx. 483 × 406 × 1041 mm |
| Empty Weight | Approx. 18 kg |
| Full Weight | Approx. 63 kg |
Standard Equipment
- 10-gallon (37.9 L) tank mounted on wheels
- 20 ft (6 m) reinforced hose
- Stainless steel foam wand
- On/off ball valve
- Integrated hose holder
- Quick-change pump
- Built-in in-line strainer
- Anti-kink hose protection
- Operator’s manual
Typical Applications
- Food processing facilities
- Dairy processing plants
- Meat and poultry processing operations
- Farms and livestock facilities
- Vehicle and heavy equipment washing
- Industrial equipment cleaning
- Production area sanitation
- Cleaning and disinfection programs
- HACCP-controlled environments
Customization Options
- Pump seal materials for chemical compatibility:
- Santoprene (standard)
- Viton
- Kalrez
- Color-coded lids and hoses
- Foam wand options:
- Zero-degree spray tip
- Fan spray tip
- Optional air-line moisture separator
The FI-10N-FOAM Portable Foam Application Unit provides a reliable, efficient, and versatile solution for foam cleaning and sanitizing applications where mobility, durability, and ease of maintenance are essential.
